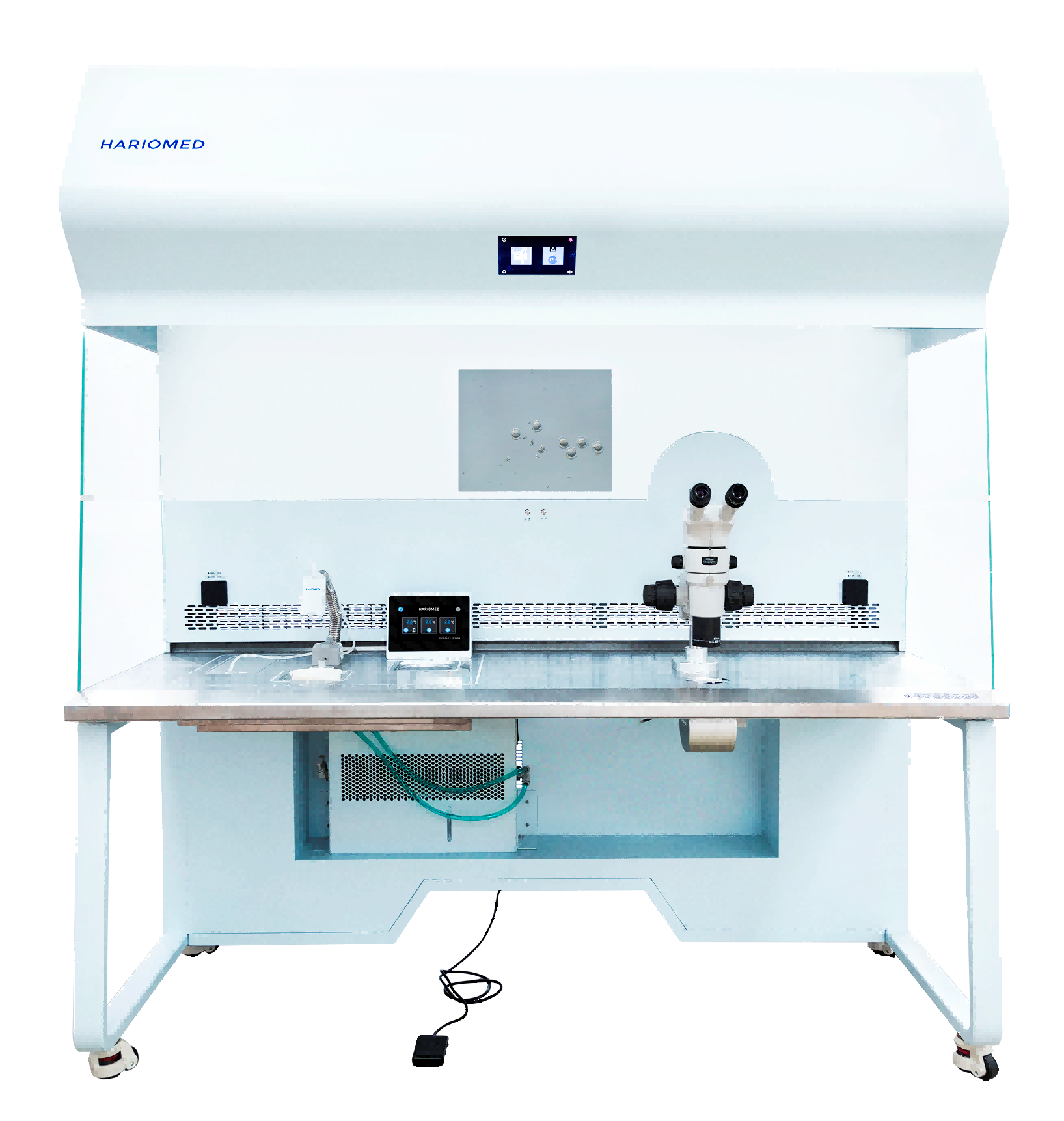

C Stage

FEATURES & BENEFITS:

Stable & Uniform VerticalLaminar Flow

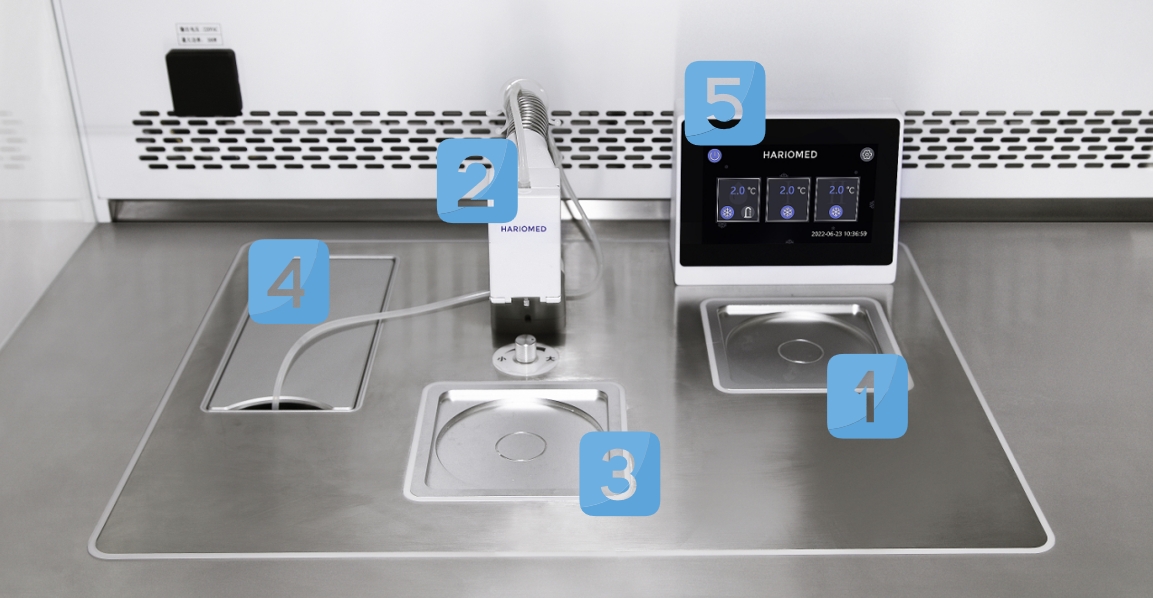

1.Refrigerated operating area:
Temperature range: 2 - 4℃
Temperature accuracy: ±0.1℃
Adopts a recessed design for easy placement of operation dishes and reduced liquid spillage.

2.Liquid cooling device:
Unique pipeline design increases the heat conduction area.
Cooling temperature: 2 - 4℃

3.Liquid delivery device:
With droplet speed adjustable via a rotary knob.

4.Liquid compartment:
Capacity: 500 mL.

5.Control monitor:
Real-time temperature monitoring of the droplet cooling device and refrigerated operating areas.
Temperature settings can be adjusted as needed.
Stable & Uniform VerticalLaminar Flow

Vertical laminar flow & average airflow 0.2~0.5m/s ISO Class 5 clean air achieved through VOC & HEPA filters
Excellent Temperature Control

U-shaped heated surface, temperature accuracy ±0.1℃ and uniformity ±0.2℃ φ90mm ITO heated glass provides excellent temp. accuracy and a large transmission illumination area

Models and Configurations

Model	C-stage 1350	C-stage 1800
Workplaces	Refrigerated x1	Refrigerated x1 heated (stereomicrpscope)x1
Heating table	none	800x500
Heating glass plate	none	x1
Stereomicroscope light source	none	x1
Refrigerated operating area	x2
Liquid cooling device	x1
Liquid delivery device	x1
Heat dissipation device	x1
Multi function screen	x2
Pedal	x1
Monitoring camera ports	x2
Monitoring camera(optional)	x2
19-inch monitor	optional x1	x1
