Assisted Reproductive Laser System

Assisted Reproductive Laser System

Human ART Equipments

This laser system is designed for lVF technicians. The movement and emission of the laser are controlled by software. which is suitable for assisted hatching, biopsy techniques, blastocyst collapsing, etc.

Overview
Specification

FEATURES & BENEFITS:

Excellent Accuracy

Within the alignment region, the movement accuracy of ablation laser is less than 1um.

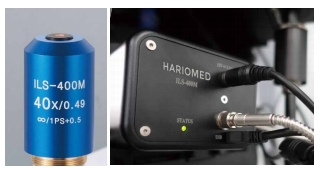

Laser objective provides clear imaging and one 20x or 40x objective lens is available.
Laser position can be automatically calibrated.
Safety IS TOP PRIORITY

Class 1 laser
1480nm ablation laser

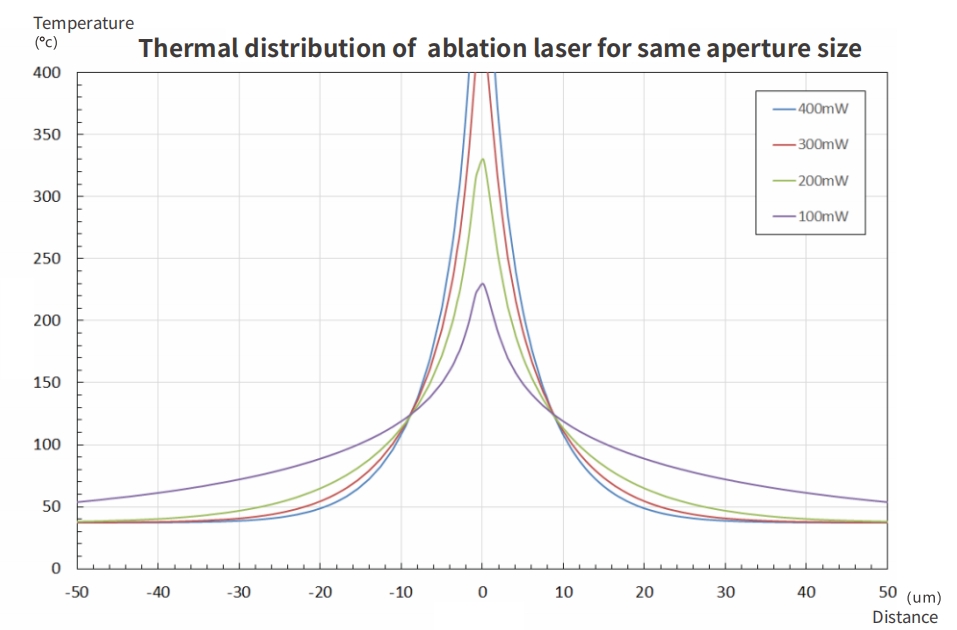

400mW laser can produce lower thermal effects when the laser active on the zona pellucida, which reduces damage to cells.
Easier and more Efficient

All functions can be selected by clicking on the patterns, including "single-pulse", "multi-pulse", "embryos", "blastocysts", "laser activate", "drilling size options" and "record" respectively.
File management: The images are assigned to the corresponding patients files respectively.

Models and Configurations

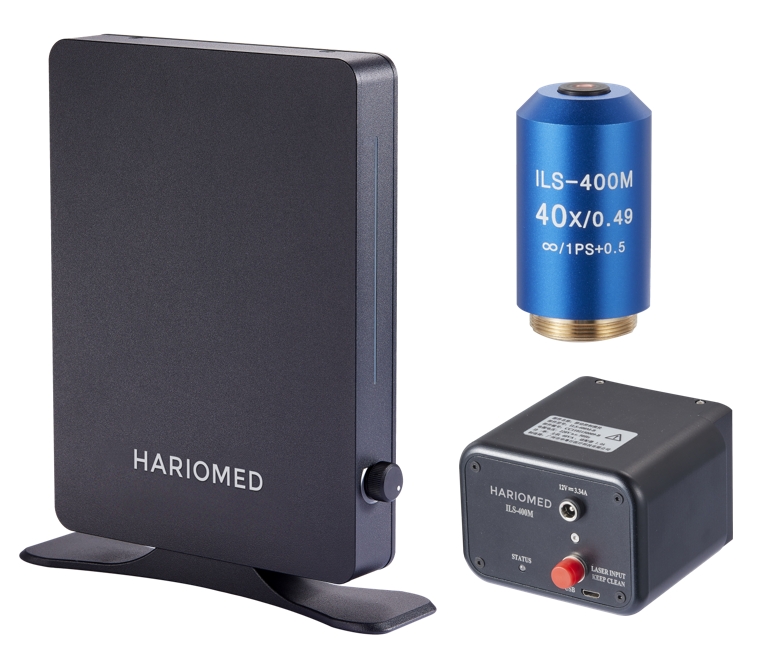

Model : ILS-400M
Ablation laser	1480nm,400mW,Class l laser product
Pilot laser	650nm,≤150uW,Class I laser product
Pulse width	5-2000μs
Laser objective	40x or 20x
Footswitch	One pedal or two pedals
Microscope compatibility	Leica DMi3000B,DMi8,DMIL Nikon TE2000,Ti-E/U/S,Ti2-E/A/U Olympus IX51/71/81,IX53/73/83 Zeiss Axio Observer 3/5/7 For more compatible ofmicroscopes, please contact us.
