Human ART Equipments

Human ART Equipments Time Lapse Incubator

Harioculture TL-16

Harioculture TL-16

Human ART Equipments

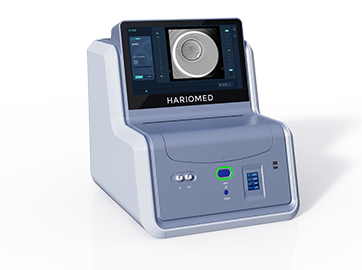

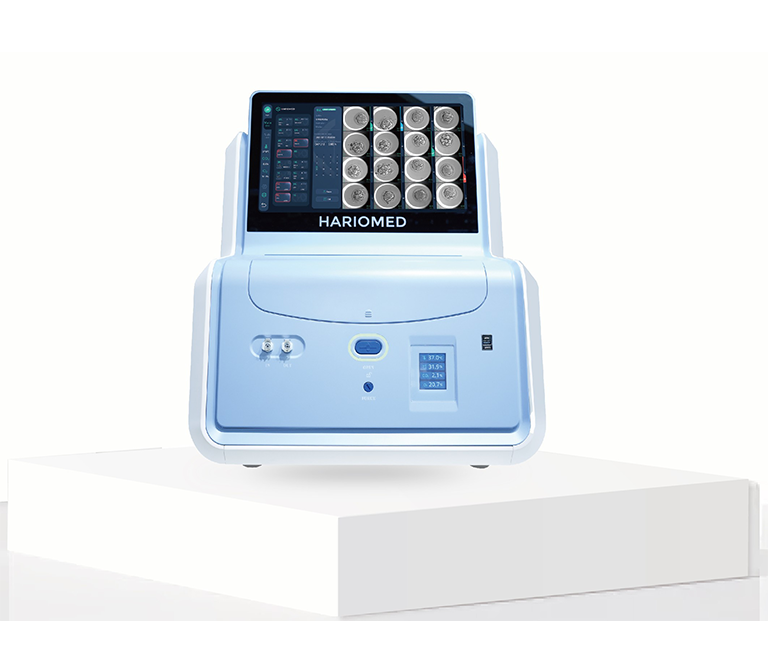

Newly launched Time-Lapse Incubator with 16-chamber high capacity, delivering stable gas and temperature control. Built-in time-lapse imaging provides embryologists with continuous, clear records for real-time, informed decisions. Flexibly supports both dry and humidified cultures.

Overview
Specification

FEATURES & BENEFITS:

Large Capacity

• 16 chamber available for each unit.

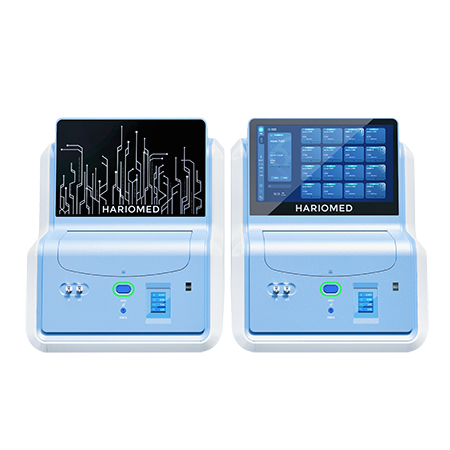

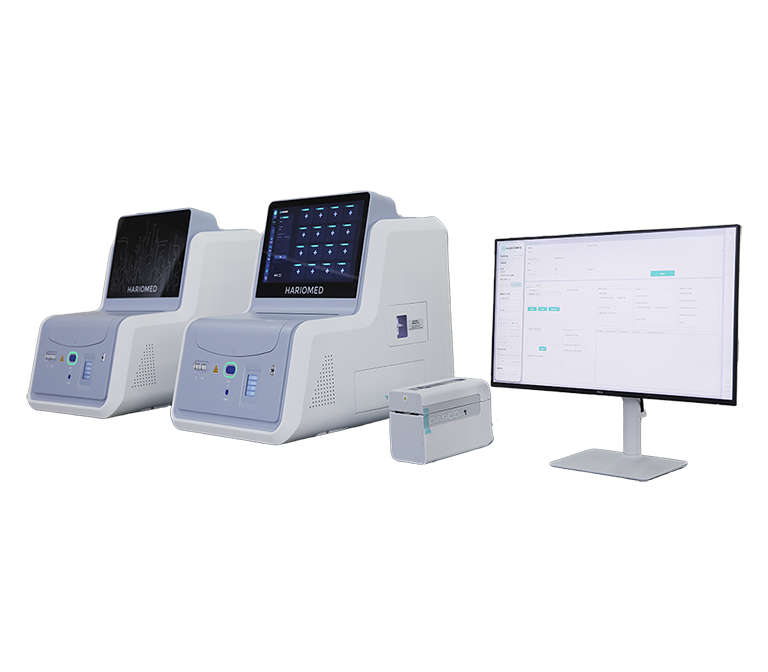

• Each main unit can be connected to a sub-unit for double expansion, from 16 to 32 chambers
• With sharing air lines and a touch screen with the mainf unit reduces costs and simplifies operation.
Safe Cultivation

• Lid & bottom heating, ensure high temperature precision and uniformity
• Gas pre-heat design
• Fast temperature & gas recovery
Flexible Culture Mode

• Both dry and humidity culture are available.
• Both pure and premixed gas modes are available.

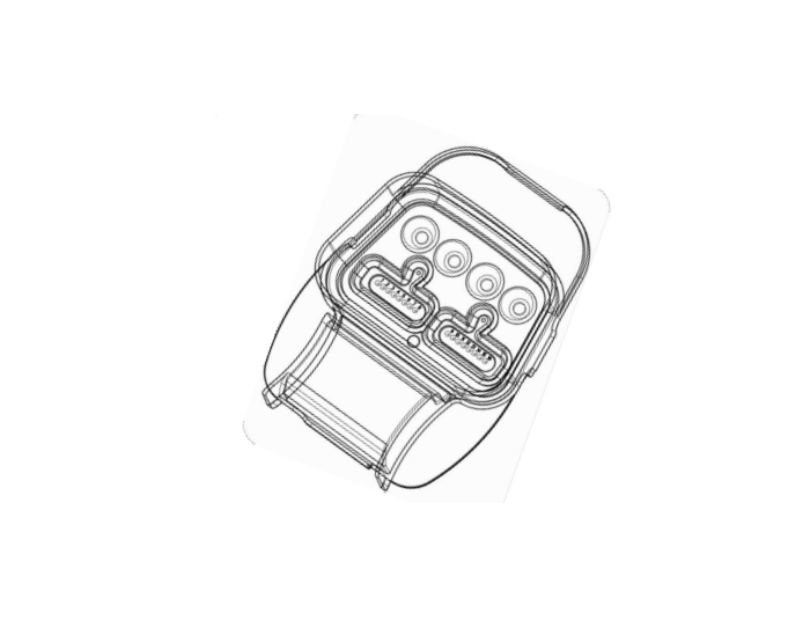

Unique Hariomed Petri Dish Design

• 16 embryo well capacity
• Quick dish preparation: Hydrophilic treated, reduce air bubble generation

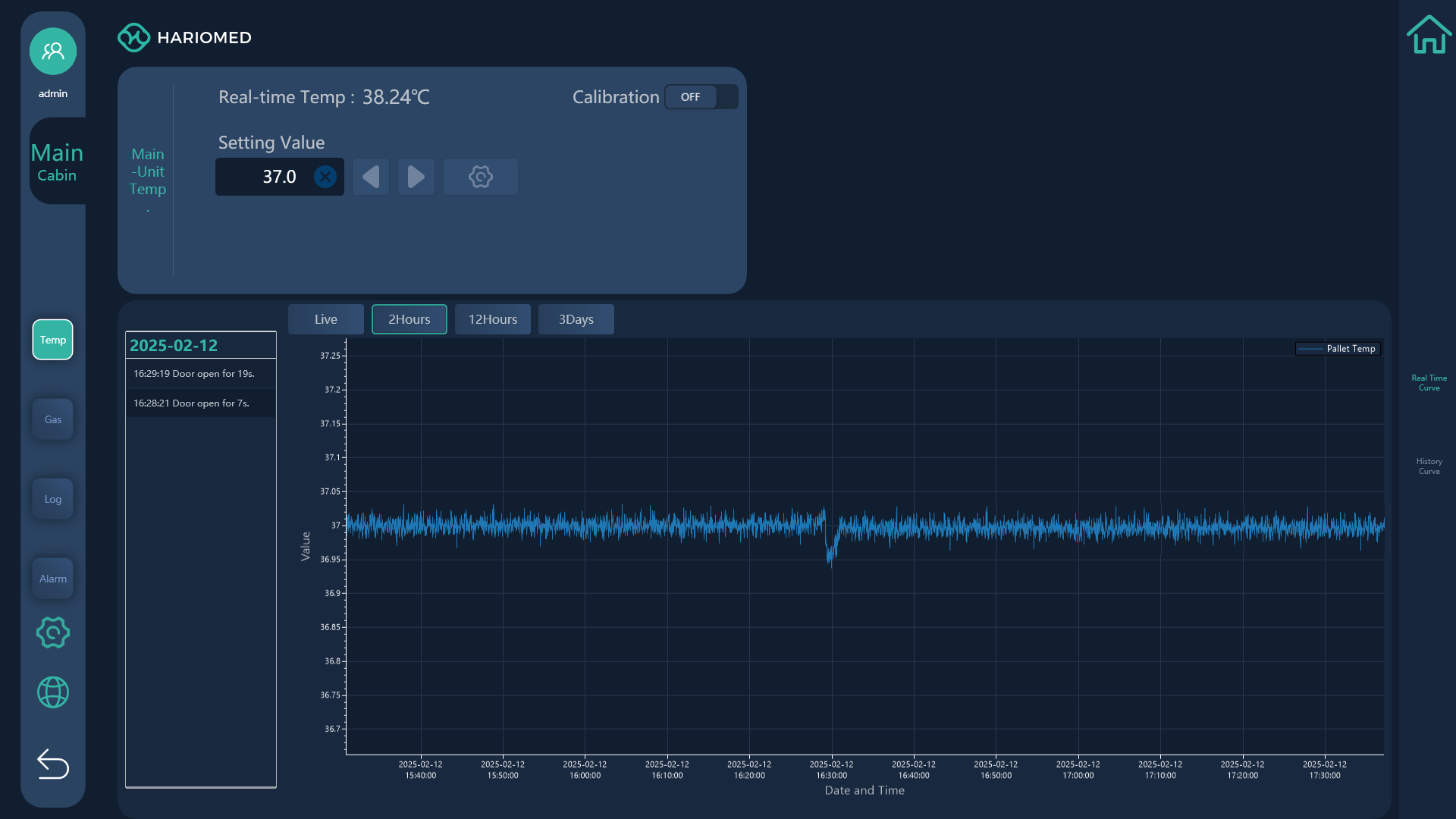

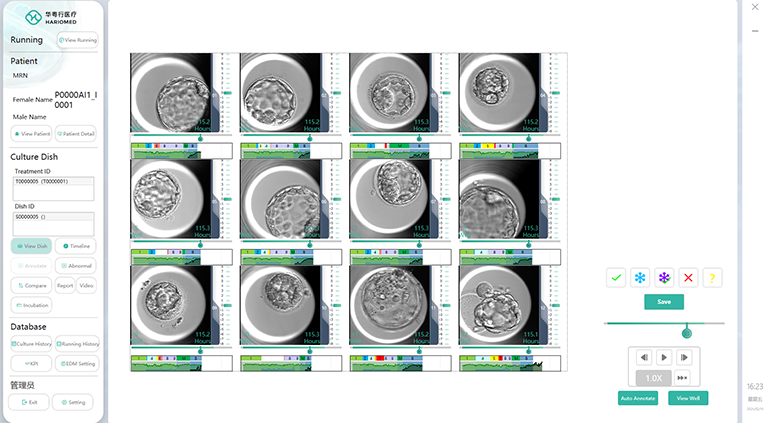

Simple data review and storage

• 18.5' touch screen to view embryo culture status and incubator operation.
• Permanent storage of original images and data.

Models and Configurations

Model	Harioculture TL-16 (main-unit)
Chamber number	16
Dimensions (WDH)	660560670mm
CO2 control range	2% - 10%
O2 control range	3% - 15%
Temperature control precision	± 0.1℃
Gas control precision	± 0.1%
