Animal Research Equipments
Animal Research Equipments CASA
GSA-610 Series
Animal Research Equipments

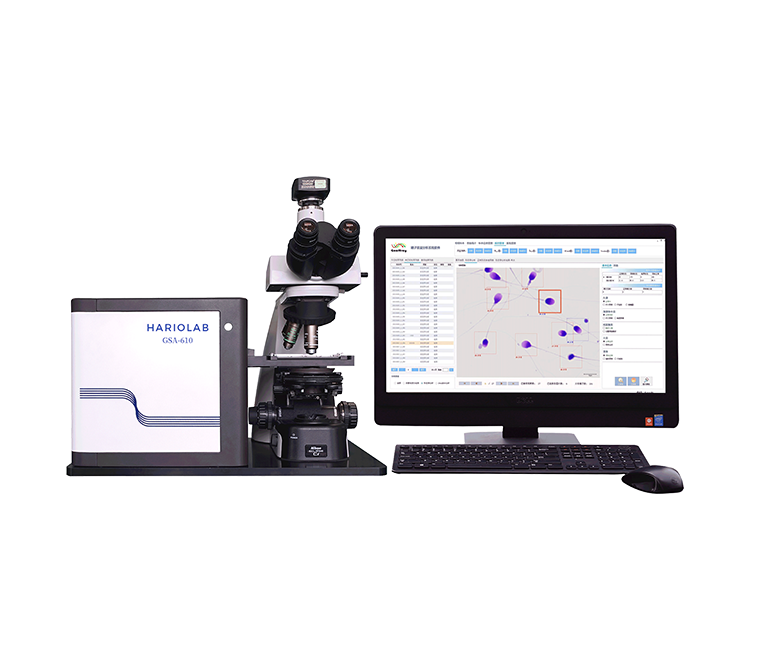

Automated sperm analysis system for accurate, high-throughput sperm concentration, motility, and morphology analysis across multiple species—mouse, rat, boar, bull, cock and sheep. Features auto-focus, auto-scan, and species-specific software compatibility.
Intelligent, precise and efficient
  • Overview
  • Specification
FEATURES & BENEFITS:
  • Research-Grade Hardware
    Research-Grade Hardware

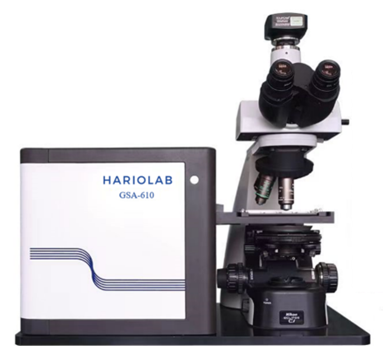

    Equipped with a high-precision XYZ motion platform, temperature-controlled stage (±0.1°C), research-grade optics, and professional imaging cameras, the system ensures consistent, automated focus, scan, and analysis—ideal for high-accuracy, high-throughput sperm evaluation.
  • Fully Functional
    Fully Functional

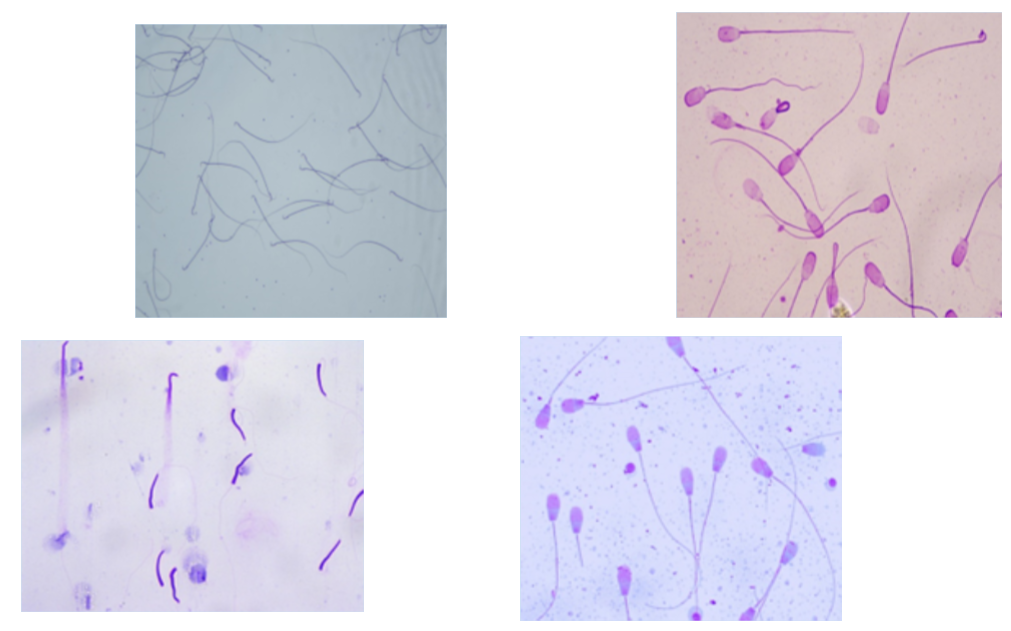

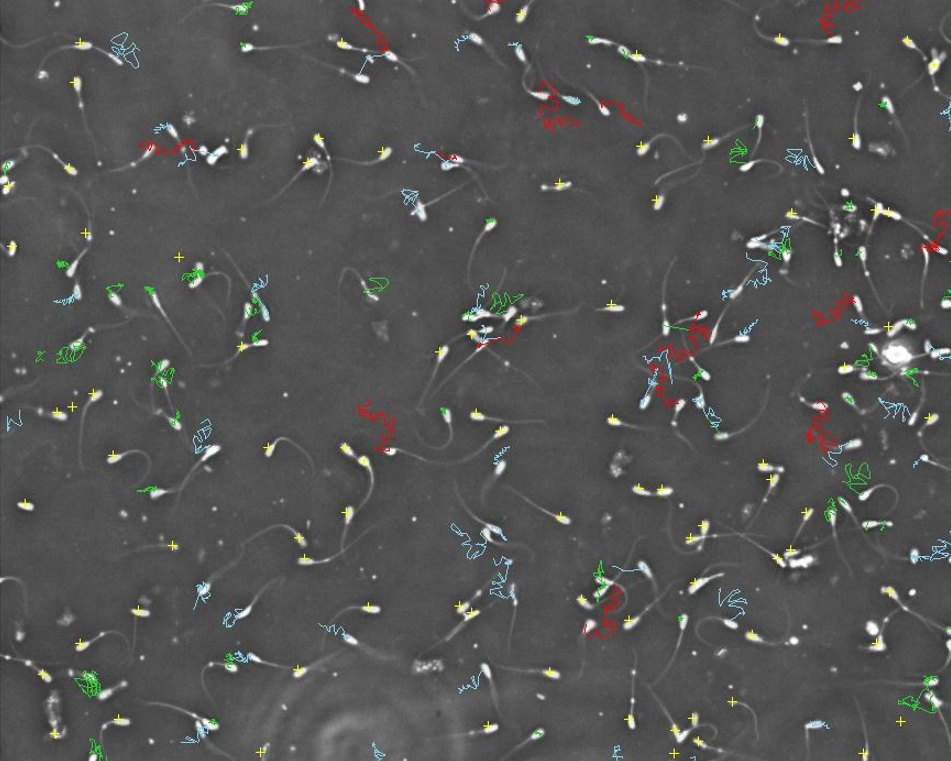

    Provides sperm concentration and motility testing, morphological analysis, satisfy the user's needs for multi-project testing and analysis.
  • Rich Species
    Rich Species
    Can be used in mouce, rat, bour, bull, sheep and cock field.

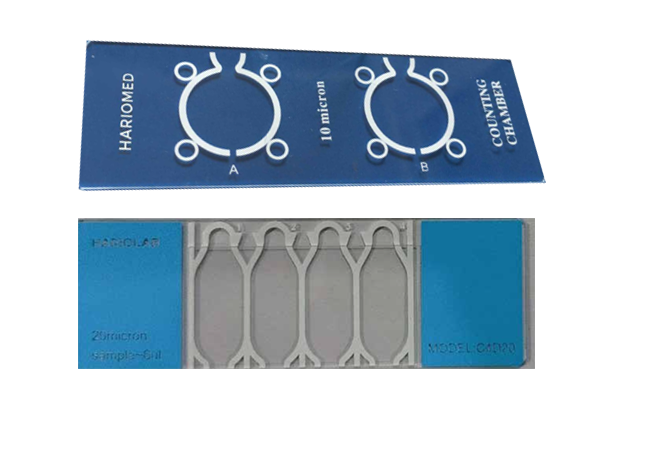

  • Precision Consumables
    Precision Consumables
    Reliable, contamination-free sperm analysis across species.
    - 10 μm & 20 μm chambers for different animals
    - Even sperm distribution with specialized slide design
    - Separate ports to avoid cross-contamination
    - Multi-chamber layout for repeatable tests
    - Works with both liquefied & viscous samples
    - Non-toxic materials maintain sperm motility
  • High efficiency
    High efficiency
    - High throughput: supports single-slide and multi-slide detection, can place 4 slides at the same time, and can detect up to 16 samples at the same time.
    - High efficiency: the average time to detect each concentration and viability specimen is less than 30s, and the average time to detect each morphology specimen is less than 60s.
Models and Configurations
  GSA-6101 Concentration + Motility GSA-6102 Concentration + Motility, Morphology
Sperm Analysis Software (Mouse) GSA-6101 MOUSE GSA-6102 MOUSE
Sperm Analysis Software (Rat) GSA-6101 Rat GSA-6102 RAT
Sperm Analysis Software (Bour) GSA-6101 BOUR GSA-6102 BOUR
Sperm Analysis Software (Bull) GSA-6101 BULL GSA-6102 BULL
Sperm Analysis Software (Cock) GSA-6101 COCK GSA-6102 COCK
Sperm Analysis Software (Sheep) GSA-6101 SHEEP GSA-6102 SHEEP
