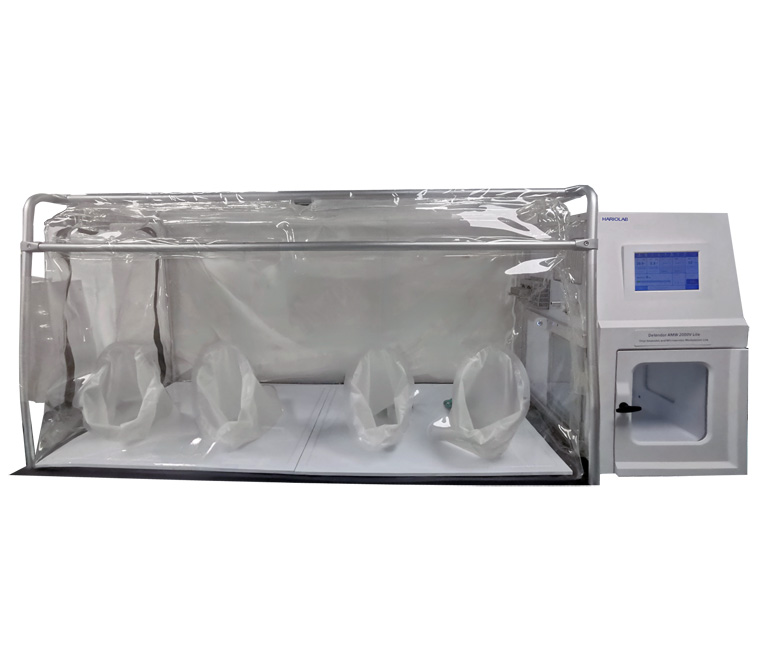

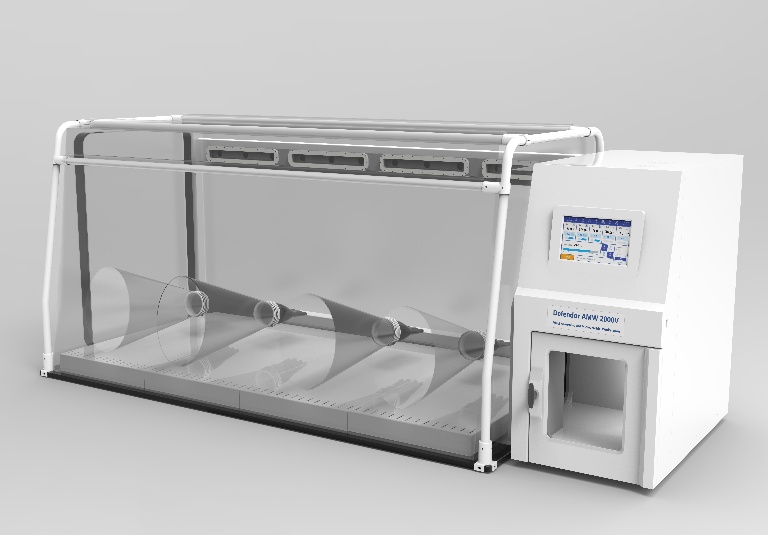

V lite Vinly workstation series is an economical version based on V-series, No HEPA filtration, no temperature control in the inner chamber, and the same other gas control parameters as the V-series. It is used in applications where cleanliness is not required and instruments are placed inside. A built-in incubator is available as an option.
Overview
Specification
FEATURES & BENEFITS:
Large and Comfortable
The Vinyl Workstation provides a huge working capacity,Most devices can be easily placed inside for use,with 2-4 optional operation ports.Operation very Comfortable.

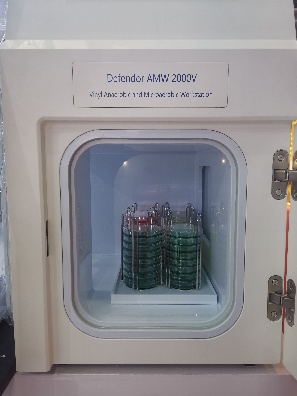

Super large multifunctional airlock
Large capacity airlock: 42L, supports transfer of up to 300 × 90mm Petri dishes per cycle. Multi-functional: Vacuum pumping, nitrogen purging, or customizable combinations. Side-sealed zipper can be opened for deep cleaning or equipment entry/exit.
Multi mode & excellent conditions control
Allows flexible selection between anaerobic or micro-aerobic modes based on experimental needs. O2 control: 0%-20%. CO2 control: 0.1%-30%. H2 control: 0%-5% (option). Humidity: Up to 85% RH.
User-Friendly and smart

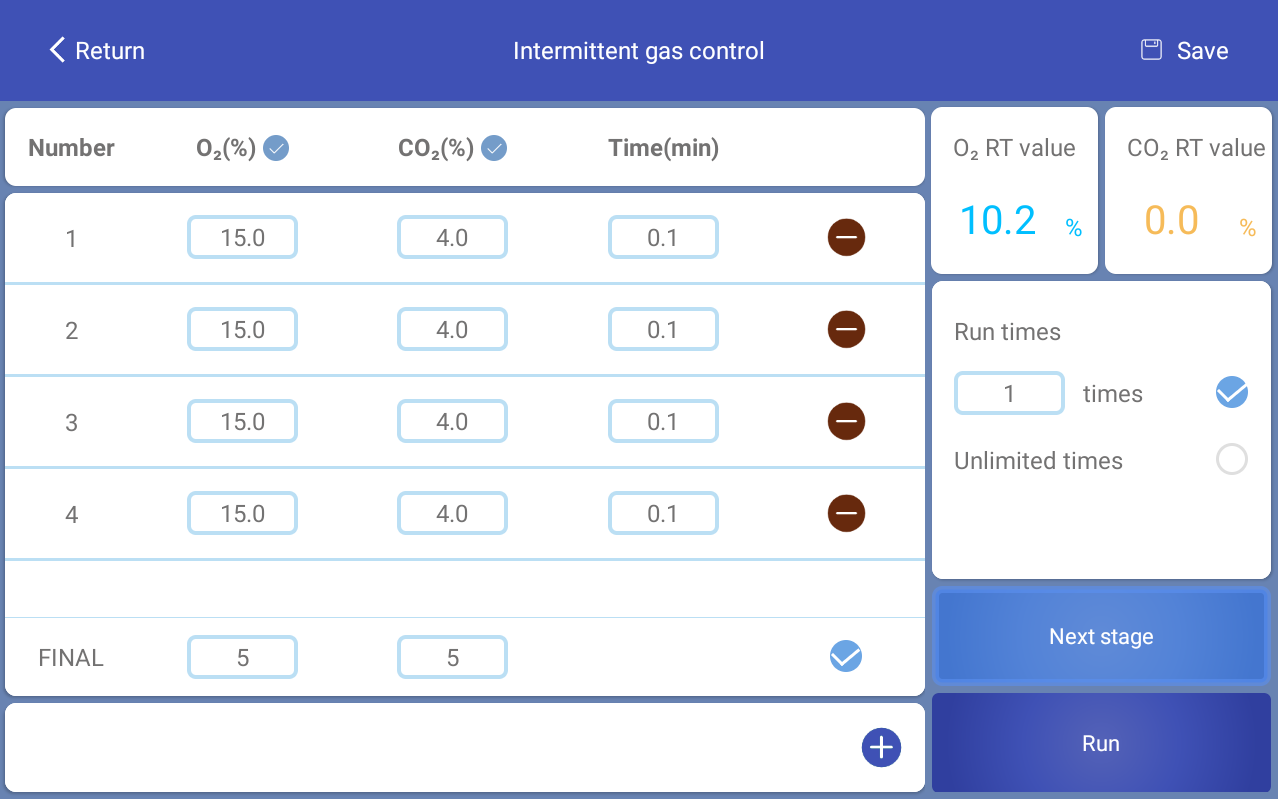

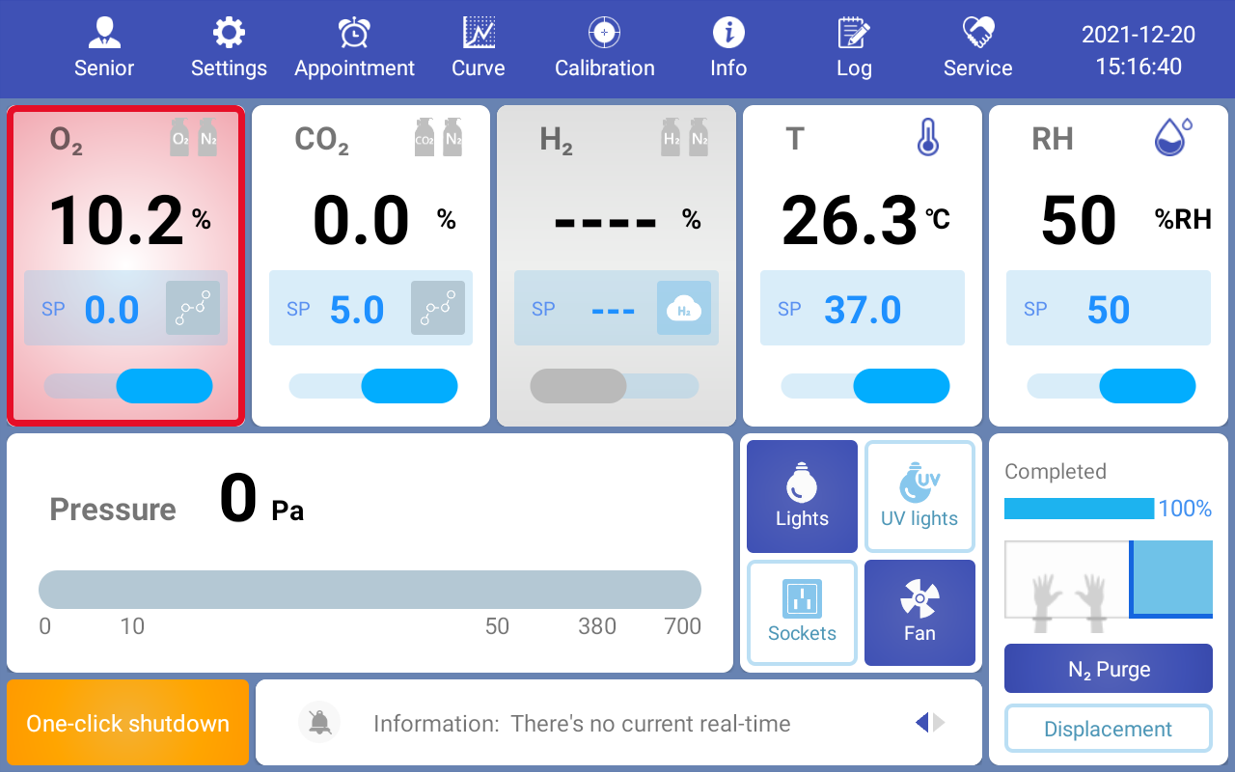

10.1-inch Color Capacitive Touchscreen: Intuitive interface for control and monitoring. One-Touch Start/Stop: Instantly activate/deactivate all systems (anaerobic environment, temperature, humidity, fan, etc.). Tri-Color Anaerobic Status Display: Green (good), Yellow (warning), Red (critical) for real-time condition alerts. Automated Calibration:One-touch oxygen sensor calibration for accuracy assurance.Timed calibration reminders to maintain sensor reliability. Programmable/Cyclic Control: Enables intermittent adjustment of O2 and CO2 concentrations. Users can independently set parameters including O2/CO2 levels, duration, cycle count, and other variables for automated cyclic operation. Out-of-limit alerts for temperature, humidity, and oxygen levels.
High security and goog data Integrity

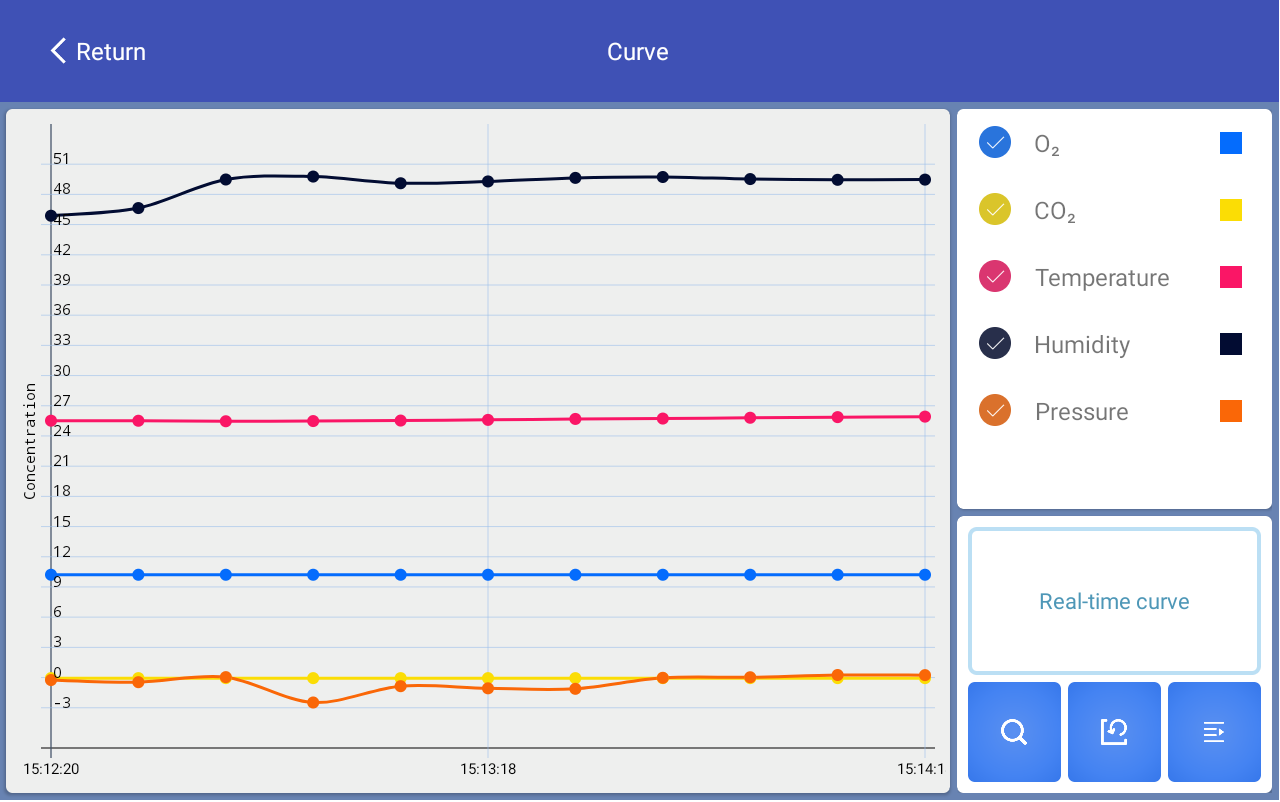

Three-tier password login system: Enforces hierarchical user permissions (admin/operator/guest). Operation logs: Automatically records timestamp, user ID, and actions (e.g., parameter adjustments, mode switches). Real-time & historical monitoring:Displays dynamic curves for O2₂, temperature, humidity, and pressure (supports zoom-in/out). Exports historical parameter curves (CSV/Excel format) and alarm records for compliance or analysis.
