Human ART Equipments
Human ART Equipments Micromanipulator System
Microinjectors
Human ART Equipments
  • Overview
  • Specification
FEATURES & BENEFITS:

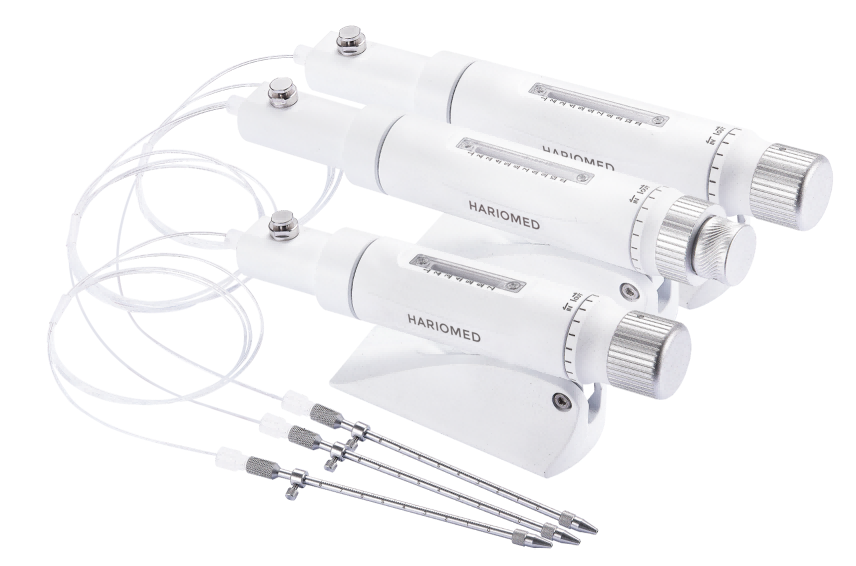

  • Oil microinjectors
    Oil microinjectors
    Two Models Available
    - Coarse Adjustment & Coarse - fine (senior)
    Resolution: 1μl (senior); 10μl
    Sensitive and easy handle
    Marked with In & Out to avoid wrong tuning
    Lager oil capacity: 1 ml, less oil refill frequency

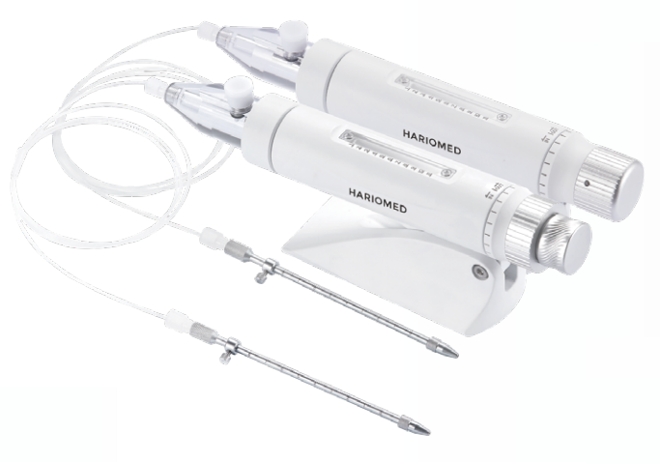

  • Pneumatic microinjectors
    Pneumatic microinjectors
    Three Models Available
    - Coarse Adjustment
    - Coarse Adjustment (short)
    - Coarse-fine Adjustment (senior)
    Resolution: 10ul (senior); 100ul; 600ul (short)
    Quick pressure release and balance via button
    Air volume visible
Models and Configurations
Microinjector type Senior oil microinjector
IMS-O-505D		 Oil microinjector

IMS-O-505S		 Senior pneumatic microinjector
IMS-A-520D		 Pneumatic microinjector
IMS-A-520S		 Pneumatic microinjector
IMS-A-330S
Moving distance Maximum
distance: 50mm		 Maximum
distance: 50mm		 Maximum distance: 30mm
Maximum pressure 2MPa 0.1MPa 0.2MPa
Volume 1ml 2.5ml 6ml
Volume change
per revolution		 10μl/1μl 10μl 100μl/10μl 100μl 600μl
